RISCVBusiness Overview

RISCVBusiness is intended to be a configurable RV32 implementation targeting embedded applications. For information on the RISC-V Instruction Set Architecture, see the RISC-V Ratified Specifications.

Currently, the core supports the following features:

• Base ISA:
  • RV32I
  • RV32E (Reduced register count)
• ISA Extensions:
  • M
  • A
  • C
  • B
  • Zicsr
  • Zifencei
  • Zicond
• Privileged Architecture
  • Machine mode with 16 PMP regions
  • Supervisor with SV32 virtual addressing
  • User mode
• Microarchitectural Features
  • Dual core

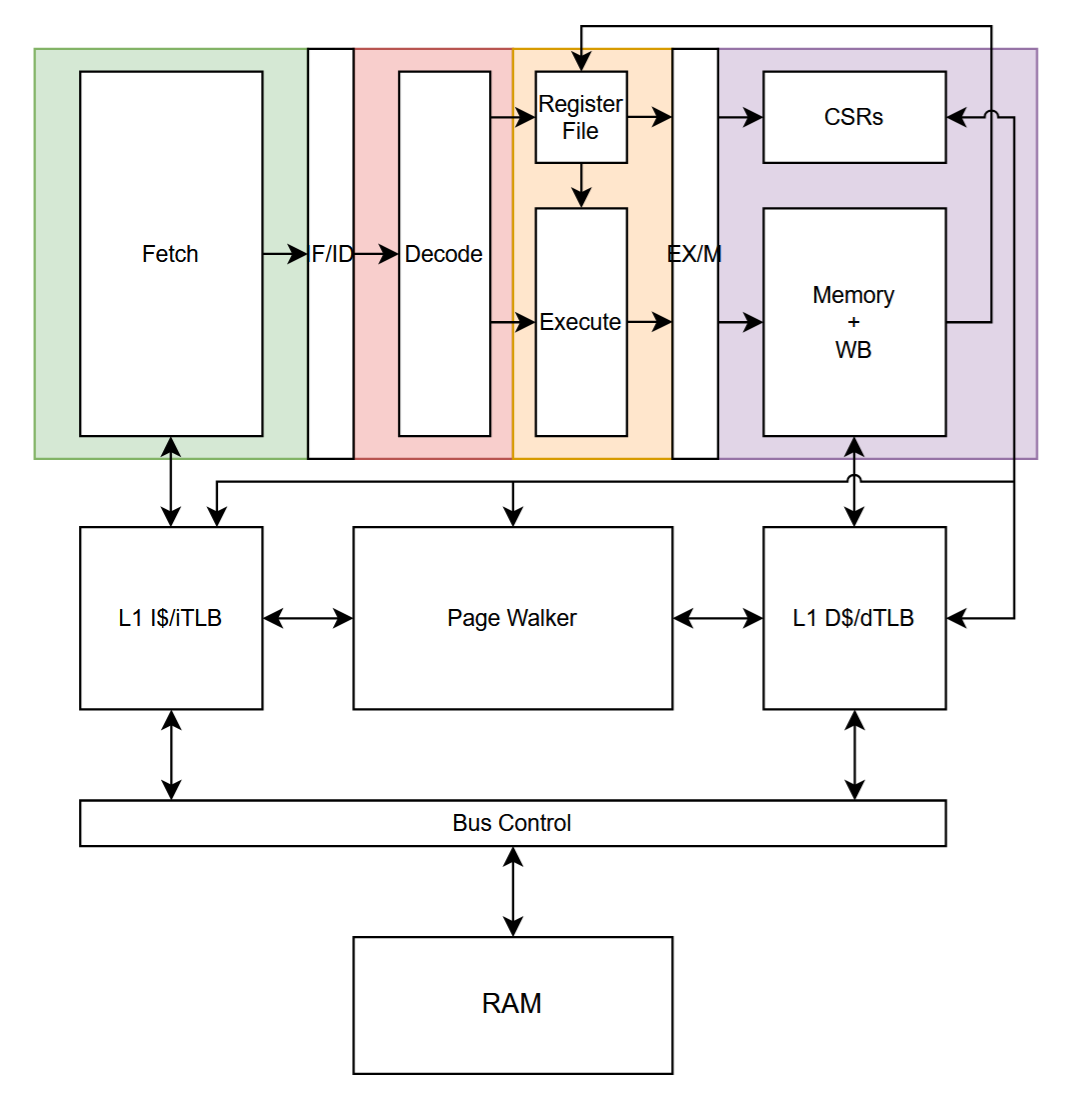

  • 3-stage pipeline
  • Parameterized I/D Caches (coherent)
  • Parameterized I/D TLB
  • Branch prediction
  • Selectable multiplier implementation

Most of the features listed above can be tuned with a YAML file, see example.yml for an example of core configuration.

For planned features, see the GitHub issues
