RISC-V Supervisor Extension Overview

Introduction

RISCVBusiness supports the RISC-V “S” Supervisor Extension. We implement the base extension as outlined in the privilege specification, along with a translation lookaside buffer (TLB), hardware page walker (PW), and a virtually indexed, physically tagged L1 cache (VIPT L1$) with the goal of running an operating system on the processor in the future.

Background

Supervisors, also known as operating systems (OS), are privileged programs that interface between user-programs and the hardware it runs on. These programs introduce important functionalities, such as paging/page tables, virtualized address spaces, and address translation. Paging splits memory up into manageable chunks. In RISC-V’s case, pages are 4KB in size. During the start up of an OS, page tables are defined in memory. These tables store the translations for virtual addresses to physical addresses. In order to easily support this, a register is designated to storing the pointer to the page table of a current process. A virtualized address spaces, or virtual memory, is assigned to each running process by the operating system. These address spaces are private for a given process, so no other process will be able to directly edit another process’ address space. However, in order for virtual memory to be possible, the pages of a virtual address space need to be mapped to physical pages. These physical page mappings are what’s stored in a process’s page table. Through the process of address translation, a virtual address can be converted to a physical address. This physical address is then what addresses main memory. The amount of physical pages depends on how much physical memory a processor has.

The 32-bit RISC-V “S” Supervisor Extension adds 11 new Control and Status Registers (CSRs), 1 instruction, a 32-bit virtualized address space (Sv32), and two-level address translation. Some of the CSRs are subsets of machine mode CSRs.

Architecture

Pipeline

It is based on the 3-stage pipeline from the multi-core branch, featuring the following stages:

• Fetch
• Decode and Execute
• Memory and Write Back

Visually, the decode and execute stages are made distinct, but occur in the same pipeline stage. This was done out of consideration for the vector extension, which is close to being integrated into the pipeline. The functionality of our design should not wildly differ between a 3- or 4-stage pipeline.

The supervisor implementation augments the 3-stage pipeline by adding instruction and data TLBs, which are tightly-coupled with the corresponding caches (accessed in parallel). The caches and TLBs are connected in turn to the bus controller to execute cache or TLB fills. The other major supervisor component, the Page Walker, connects to each of the TLBs to service TLB misses. New S-mode CSRs also connect to the page walker and TLBs to provide information such as page table base and current execution mode.

Two Level Address Translation

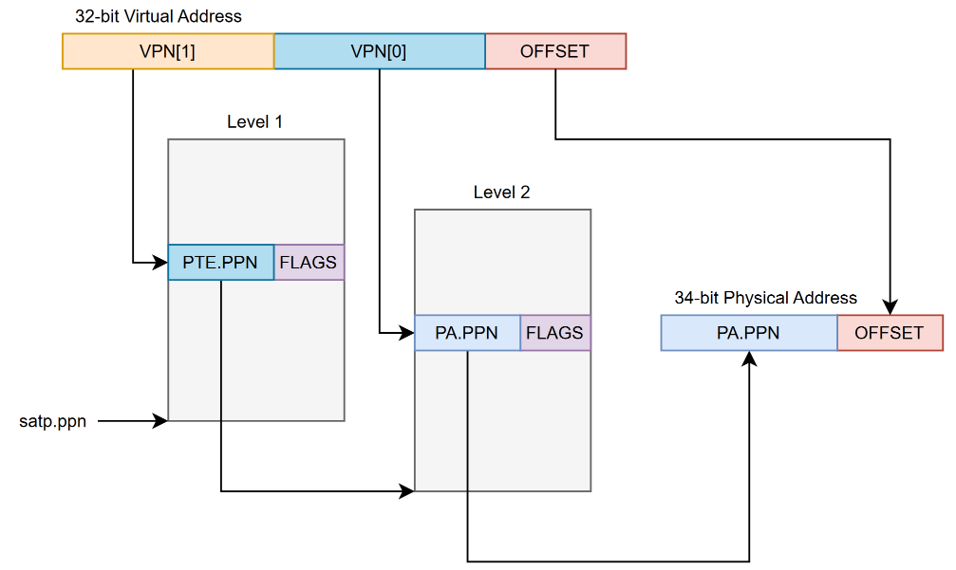

Two-level address translation will operate as shown in the above image. It shows how a 32-bit virtual address is split up into two virtual page numbers (VPN[1] and VPN[0]), and offset. The first stage of address translation uses VPN[1] to index the base page table referenced in the satp.ppn control and status register. The result of this operation is getting a page table entry (PTE) that contains a physical page number to be used in the next level of address translation. VPN[0] indexes the physical page from the level 1 PTE, where the level 2 PTE contains the physical page number for the translated virtual address. This physical page number is prepended to the offset from the virtual address to create the physical address.

Note that for 32-bit RISC-V, the physical address may be a maximum of 34 bits. While single programs are still limited to 4GB of virtual address space due to the 32-bit registers, the system can accommodate up to 16GB of address space. This could be leveraged by running, for example, 5 processes each using 3GB of memory.

Virtually Indexed, Physically Tagged (VIPT) L1 TLB and Cache

The L1 cache and Translation Lookaside Buffer (TLB) are accessed in parallel, opting for a virtually indexed, physically tagged (VIPT) cache design.

The L1 Cache and TLB are accessed with the same virtual address and control signals, the TLB additionally taking in an Address Space ID (ASID). The returned data is valid (“a hit”) only if both the TLB and L1 cache produce a hit, and the physical page number retrieved from the TLB matches the tag retrived from the L1 cache.

The total amount of data stored in a cache must not exceed the product of the cache associativity and page size (4KB) for a VIPT design to function without experiencing aliasing.

Translation Lookaside Buffer

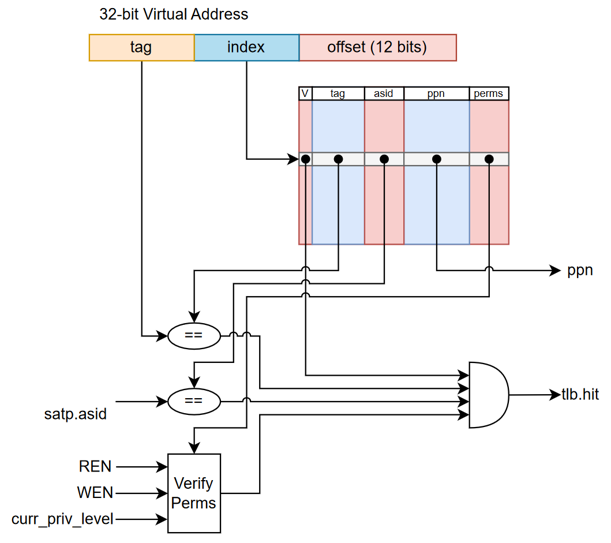

The TLB stores the physical page number for a virtual page alongside the permissions of the page and an Address Space Identifier (ASID). The incoming virtual address is split (LSB to MSB) as a 12-bit page offset (corresponding to 4KB pages), index bits (number based on number of entries), and tag bits (the remainder). The offset bits are not used for TLB access, and are identical in the virtual and physical address. The TLB entry is selected by the index bit, and a hit is determined based on whether the incoming tag bits match the tag bits of the selected entry.

When the TLB is accessed, the page permissions and ASID from the selected entry are checked against the current state of the RISC-V processor (ASID, CPU mode) and the access type (Read, Write, Execute). If the ASID doesn’t match or the valid bit is not set, a TLB miss is raised. If the permissions are not correct, a page fault is raised.

Hardware Page Walker

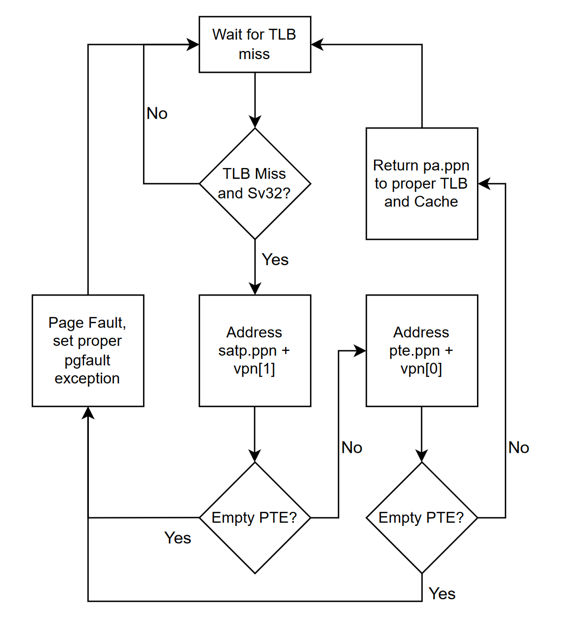

A hardware page walker is used to walk pages without the extra bits software page walks would add. Here is the process that it follows:

1. Wait for a TLB miss to occur in the instruction or data L1 TLB’s. If there is a TLB miss and 32-bit address translation is enabled (labelled Sv32 in the RISC-V specification), then we begin the first level of address translation.
2. The page walker will address the value stored in satp.ppn indexed by VPN[1]. If the value received is an empty page table entry, a page fault is raised. If not, we are at the last level of address translation if any of the read, write, or execute permission bits are set. The physical page number in the PTE is the physical page for the physical address, which we will call pa.ppn, and we move on to step 4. Otherwise, we continue on the the next level of address translation using the physical page number in the PTE, which we will call pte.ppn.
3. The page walker will address the values stored in pte.ppn indexed by VPN[0]. If the value received is an empty page table entry, a page fault is raised. If not, we are at the last level of address translation. If the read, write, and execute bits are not set or the permission bits are not allowed by the specification, a page fault is raised. Otherwise, the physical page number in the page table entry is valid and it is the physical page for the physical address, which we will call pa.ppn, and we move on to step 4.
4. Return pa.ppn to the proper TLB and Cache. Go back to step 1.
